Miner Stats Dashboard

Details about each miner

The Miner Stats dashboard allows you to dive more deeply into each miner in your fleet. Here you can see details of its performance and history, as well as its current status.

There are five tabs containing information about the miner:

The Actions button appears on each Tab, and can be used to conduct selected actions directly on that miner.

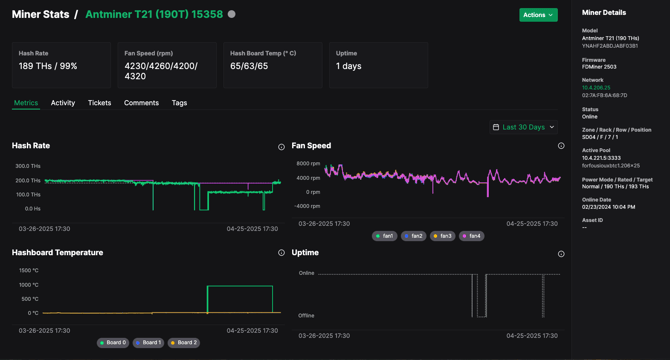

The Metrics Tab

The heading at the top shows the Miner Name. The gray  dot next to it will blink if the miner has been set to blink in the Actions Menu.

The panel below the miner name shows you the current hashrate, fan speeds, hashboard temps, and uptime.

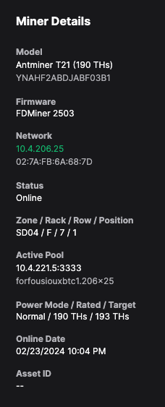

The panel at the right of the screen gives you additional details about the miner: model, serial #, firmware, network, MAC address, current status, location, active pool, power information, how long the miner has been online, and asset ID (if any).

The Metrics tab contains four graphs depicting miner status over time. Click the time tool - at the top right of the graphs - to choose the range of time you want to see.

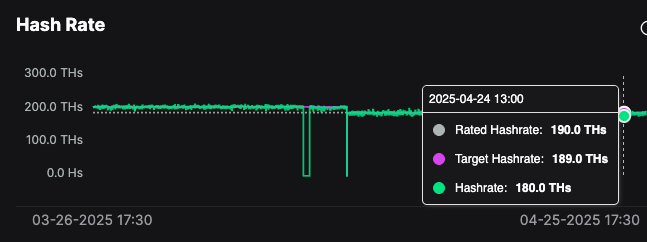

Hash Rate Graph

The hash rate graph shows three metrics over a period of time: rated hashrate of the miner, its target hash rate, and its actual hash rate. If you roll your cursor over the graph you can see these stats at any given point in time.

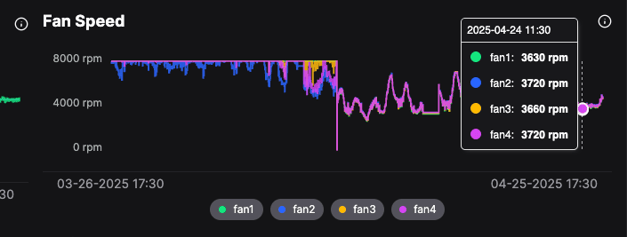

Fan Speed Graph

The fan speed graph shows you the speed of each fan over time, as well as at any given moment.

Hash Board Temp Graph

The hashboard temperature shows you the PCB temperature at the airflow outlet. Like the other graphs, you can see this over a time range you select, as well as roll your cursor over to see the data at any particular moment in time.

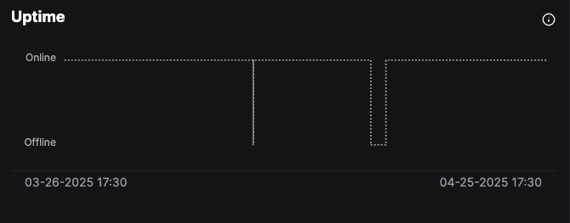

Uptime Graph

Here you can track whether the miner was on- or offline over the period of time you have selected.

Activity Tab

The activity shows a log of changes that were made with a time stamp and the user who made the change.

Tickets Tab

Shows a history of tickets opened on this miner.

Comments Tab

This is a space to leave comments on this particular miner.

Tags Tab

You can create your own tags to track lists of miners in any way you choose. Here you can see and edit Tags that have been applied to this miner.

Actions

The Action button on the top right allows you to execute actions on this miner. The actions you can take are explained below.

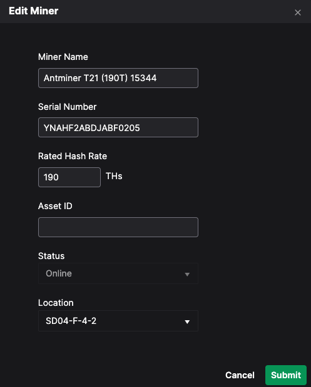

Edit Miner

Edit miner allows you to quickly change details of the miner's record. Fat fingered a serial number? Correct it here. You can also change the location of the miner if you've moved it to a different slot. You can also enter your own custom asset ID number here.

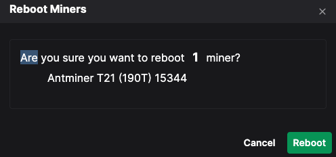

Reboot Miner

If you select Reboot Miner, you'll get a warning message. Press Reboot to execute the command, or Cancel to back out.

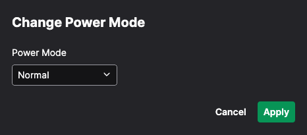

Power Mode

You can change the Power Mode of the miner here. Different miners may have variable support for power modes, so this will only display choices allowed by that miner's firmware.

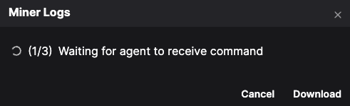

Fetch Logs

Clicking Fetch Logs will download the miner logs onto your computer. If you are not on the local network, there may be a slight delay in downloading the file.

Configure Pools

Here you can quickly repool your miner, choosing from your stored Pool configs, or adding new pool information directly. To adjust your Pool settings, select the green Manage Pools button at the top right of the window.

Create Ticket

Create a work order on this miner directly from the miner interface if you see a problem.

Link Miner

This will allow you to move this miner to another slot, removing any miner assigned to that slot.

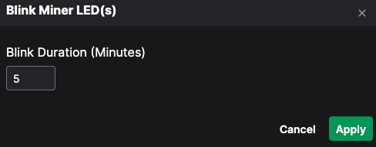

Blink Miner LED(s)

Blink the LED light on the miner in order to quickly be able to locate it in the racks.
